Rotary chimney
VENTOS X ROTO G18
Eurovent® VENTOS X ROTO G18 is an advanced roofing vent with the venting diameter of 150 mm and the venting entry of 170 mm, made of high-quality plastic, aluminium and galvanised steel. It is equipped with supporting turbine that ensures low rotating resistance and high efficiency. The turbine is equipped with 15 aluminium guide vanes, shaped the way it strengthen natural draught of the venting channel, preventing changing the direction of the venting process (preventing downdraft). The construction of the roofing vent supports ventilation by using wind energy and ensures correct chimney draft. It has an anti-condensation system that removes condensation outside the roof. The profiled base prevents rainwater from flowing in. Tilt angle adjustment from 5 ° to 45 °. It has a base for mounting a chimney on sheets with G18 stamping. Available in several of the most popular color versions according to RAL colors.
Advantages:
- the turbine empowers natural air draft
- prevents air backdraft
- Compliant with the PN-83 / B-03430 standard
- Large ventilation surface
- Anticondensation system
- UV resistant, whether resistant
- Complete set ready to install
Application and technical data

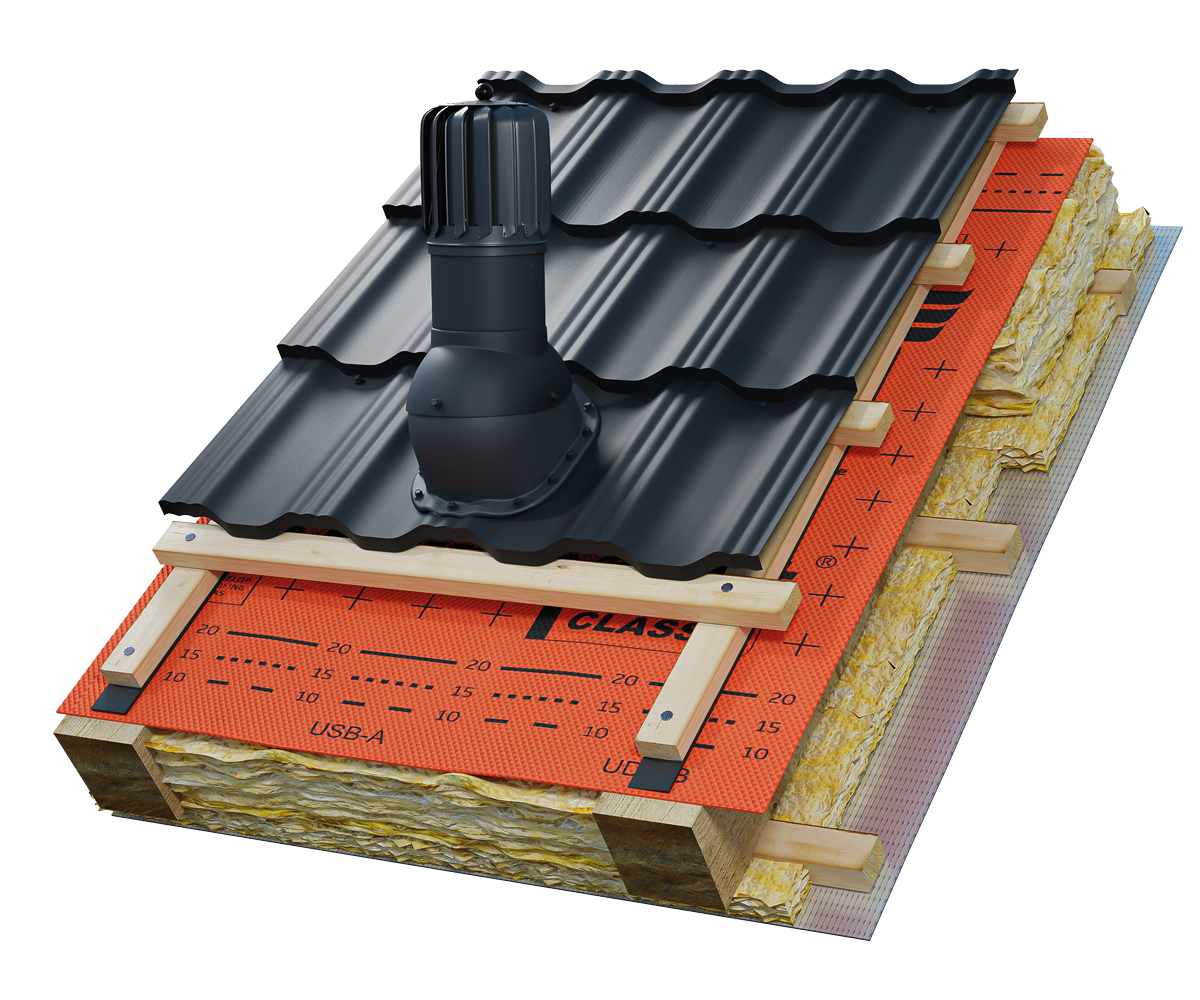

Eurovent® VENTOS X ROTO G18 rotary roof vent is used as a roof exhaust outlet for natural ventilation ducts in residential and public utility buildings. The vent complies with PN-83/B-03430 with amendment /Az3. The vent base is adapted for installation on pitched roofs covered with G18 profile metal roof tiles. Adjustable roof pitch range from 5° to 45°.
Gallery
System products
To ensure maximum ventilation performance and tightness of roof connections, Eurovent® VENTOS X ROTO G18 should be used in combination with:
- Eurovent® system installation accessories, such as FLEX X, FLEXOS X and SEAL EPDM, ensuring a durable and tight connection of the ventilation chimney with the roof covering,
- Eurovent® highly vapour-permeable roof membranes, which support proper roof slope ventilation and protect the structure against moisture,
- Eurovent® sealing and adhesive tapes, protecting the installation areas against weather conditions and moisture penetration,
- Eurovent® roof access elements, facilitating safe service access to the ventilation chimney.
The use of complete system solutions by Eurovent® guarantees effective moisture removal, stable airflow and long-term tightness of the entire roof system.
