Flat air vent chimney
VENTOS X FLAT PLUS R
The Eurovent® VENTOS X FLAT PLUS R roof-space vent is made of plastic. Its profiled cap prevents rainwater ingress. The base is designed for roofs covered with ROMAŃSKA, PODWÓJNA RZYMSKA, MECKLENBURGER, FINKENBERGER and ALPEN DACHSTEIN concrete roof tiles. Available in popular RAL colours.
Advantages:
- For ROMAŃSKA-type concrete roof tiles
- UV resistant
- Quick and easy installation
- Complete set ready to install
Application and Technical Data

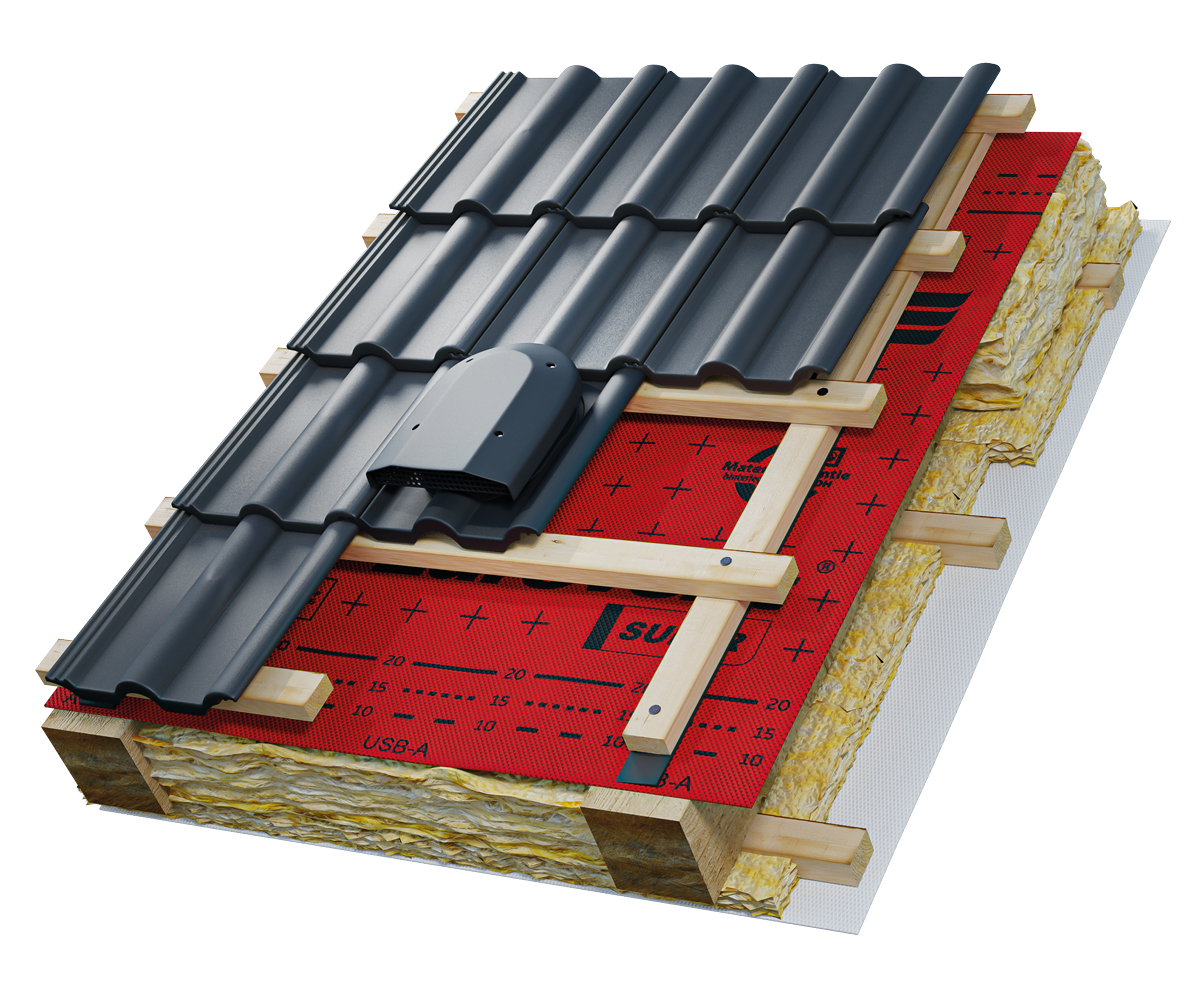

The Eurovent® VENTOS X FLAT PLUS R is used as a ventilation element for pitched roofs with a slope from 5° to 45°. It is designed to ventilate moist air from beneath the roof covering, ensuring proper air circulation and effective roof ventilation. The base of the vent is designed for installation on roofs covered with concrete roof tiles: ROMAŃSKA, PODWÓJNA RZYMSKA, MECKLENBURGER, FINKENBERGER, and ALPEN DACHSTEIN.
Photos
Documents
The 2021 technical data sheet covers the general VENTOS X FLAT series and other bases. It does not provide the PLUS R base dimensions (400 × 326 mm) and gives different roof pitch ranges: 5–45° in the description and 10–45° in the table. The range for the PLUS R version requires confirmation in current documentation.
System products
To ensure maximum ventilation performance and tightness of roof connections, Eurovent® VENTOS X FLAT PLUS R should be used in combination with:
- Eurovent® system installation accessories, such as FLEX X, FLEXOS X and SEAL EPDM — which ensure a durable and tight connection of the ventilation chimney with the roof covering;
- Eurovent® highly vapour-permeable roof membranes, which support proper roof slope ventilation and provide protection of the structure against moisture;
- Eurovent® sealing and adhesive tapes, protecting the installation areas against the influence of weather conditions and moisture;
- Eurovent® roof access elements, facilitating safe service access to the ventilation chimney on the roof slope.
The use of complete system solutions by Eurovent® guarantees effective moisture removal, stable airflow and long-term tightness of the entire roof system.
GOOD TO KNOW
Is VENTOS X FLAT a terminal for room ventilation systems?
No. It is a roof-space vent intended to support ventilation of the roof space, rather than a typical terminal for a ventilation duct from a room.
When is a roof-space vent used?
Where the roof ventilation design provides additional air inlet or outlet points. Their number and arrangement should follow the roof construction.
Can FLAT replace proper eaves and ridge ventilation?
It should not be treated as an automatic substitute. It supplements the roof ventilation system.
Which roof pitch is suitable for FLAT?
Check the range in the current technical data sheet for the specific version, as available product materials may differ on this parameter.
Is the FLAT base selected in the same way as for VENTOS X?
Yes. The version must match the specific roof covering or an appropriately selected universal solution.
