Chimney step 400/20 mm
STEP SET METAL 400/20
Other colors available on request
The Eurovent STEP SET METAL 400 is a chimney step in a complete assembly set consisting of the Eurovent® SUPPORT DB-DC adapter and the Eurovent® STEP chimney step. The elements made of galvanized steel form a complete system for safe traffic on the roof slope with an angle of 15˚ to 60˚. The product features anti-slip corrugations on the whole surface and a hand grip. The set is available in several colour versions painted with powder paint according to RAL chart.
Advantages:
- Ready-to-install set
- Double anti-corrosion protection
- For profiled metal roof coverings - 400/20 mm roofing tiles
Application and technical data

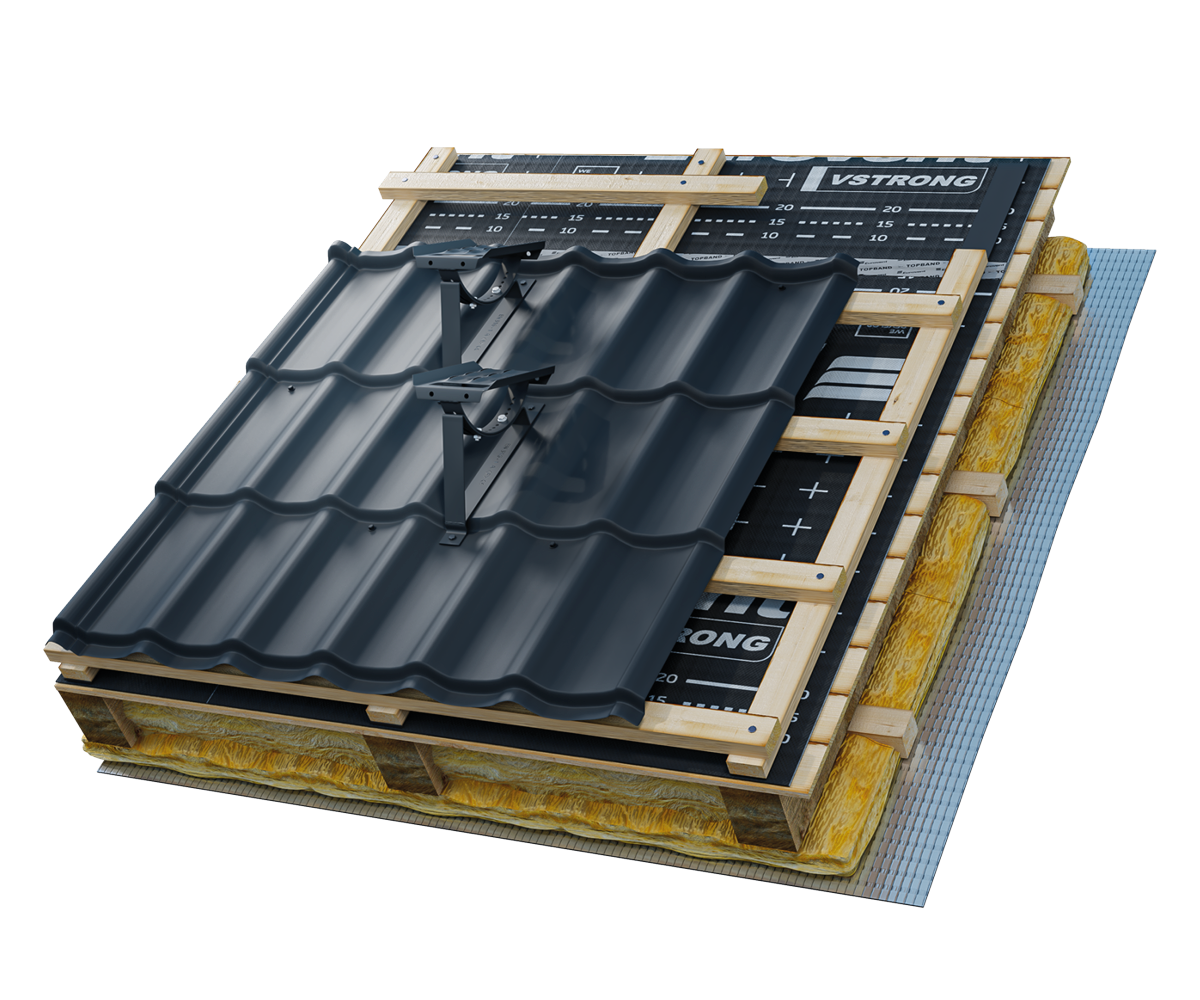

The Eurovent® STEP SET METAL 400/20 chimney step is used as a roof access element enabling safe and efficient movement of the chimney sweep in the chimney area. The set consists of two complete steps and includes all components required for the installation of two chimney steps. Thanks to a wide range of brackets, the product can be adapted to almost any type of roof covering. Installation is recommended on roof slopes with a pitch from 15° to 60°.
Gallery
System products
To ensure maximum safety and durability of the roof access system, STEP SET METAL 400/20 should be used in combination with:
- the Eurovent® VISTA DUO roof hatch, which enables safe and convenient access to the roof slope during maintenance works,
- Eurovent® roof clips, stabilising the roofing in the installation zone and increasing the resistance of the roof to wind action and snow loads,
- Eurovent® highly vapour-permeable roof membranes, protecting the roof structure against moisture and ensuring proper under-roof ventilation,
- Eurovent® sealing and adhesive tapes, improving the tightness and durability of installation joints related to the installation of roof access elements.
The use of complete system solutions Eurovent® guarantees reliable performance of roof steps, user safety and full integration of the entire access system with the roof structure.
