PLATFORM SET DB-DC SHORT
Other colors available on request
The Eurovent® PLATFORM SET DB-DC SHORT is a platform in a complete assembly set consisting of two Eurovent® SUPPORT DB-DC SHORT brackets, two Eurovent® GRIP cradles, a set of mounting screws and the platform Eurovent® PLATFORM. The elements made of galvanized steel form a complete system for safe traffic on the roof slope with an angle of 15˚ to 60˚. The set is available in several colour versions painted with powder paint according to RAL chart.
Advantages:
- Ready-to-install set
- Conforms to EN 516
- Double anti-corrosion protection
- For roof coverings made of interlocking roof tiles with a consumption of more than 10 pcs./m2 and plain (beaver-tail) roof tiles laid in scale pattern.
Application and Technical Data

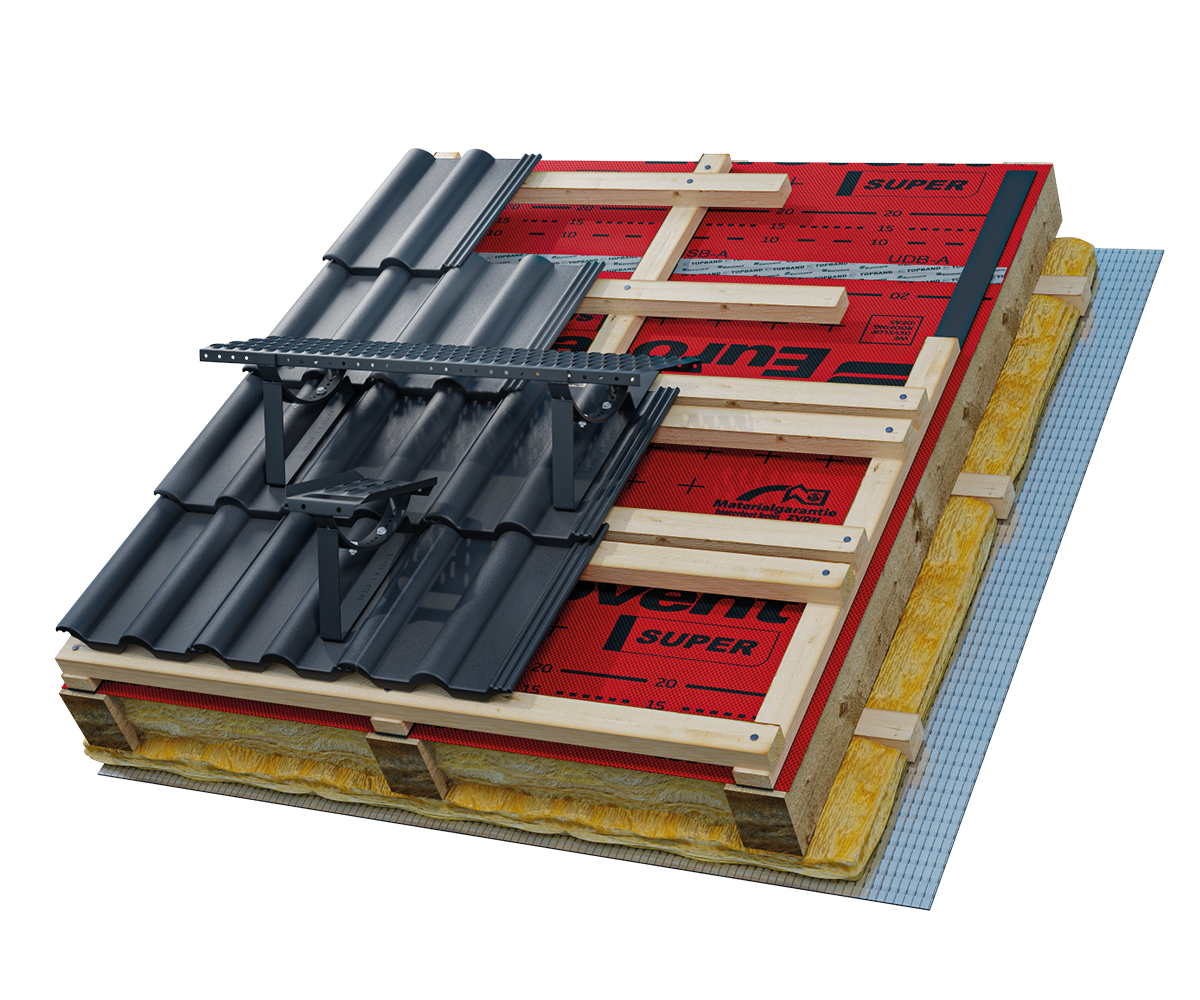

The Eurovent® PLATFORM SET DB-DC SHORT walkway set provides access to chimneys and other roof components requiring inspection and maintenance. It includes a PLATFORM walkway, two SUPPORT DB-DC SHORT brackets, two GRIP cradles and mounting hardware. The catalogue specifies suitably matched concrete or clay roof tiles with a length of ≤440 mm. Check the exact tile model before installation. The recommended roof pitch is 15° to 60°. Fix the brackets to an additional mounting batten in accordance with the SUPPORT DB-DC assembly instructions.
Photos
System products
To ensure maximum safety and durability of the roof access system, Eurovent® PLATFORM SET DB-DC SHORT should be used in combination with:
- the Eurovent® VISTA DUO roof hatch, enabling convenient and safe access to the roof slope,
- Eurovent® roof clips, which stabilise and secure the roofing in the platform installation area,
- Eurovent® highly vapour-permeable roof membranes, protecting the roof structure against moisture and condensation,
- Eurovent® sealing and adhesive tapes, increasing the tightness and durability of installation joints.
The use of complete system solutions Eurovent® guarantees safety of use, fixing durability and full integration of roof access elements with the roof structure.
GOOD TO KNOW
What is PLATFORM SET DB-DC used for?
It is a complete chimney walkway set for suitably matched clay or concrete roof tiles.
How do LONG, SHORT and WEST EPDM differ?
Mainly in bracket geometry and the way they interface with the roofing.
Can the bracket be selected only by tile appearance?
No. Always check the exact tile model in the current compatibility information.
What does the set contain?
A PLATFORM walkway, suitable SUPPORT brackets, GRIP fixing cradles and installation hardware.
Can it be installed anywhere on the roof?
The location and fixing method must follow the roof structure and current installation instructions.
